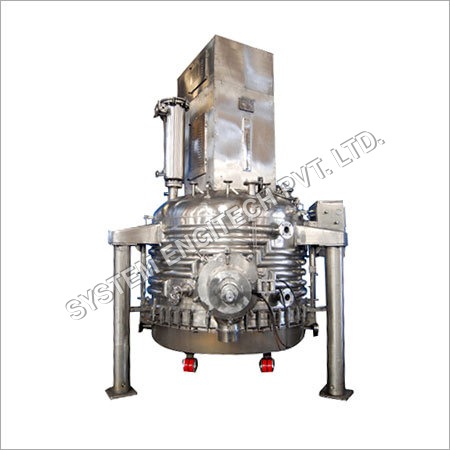

Agitated Nutsche Filters Dryers

Agitated Nutsche Filters Dryers
Agitated Nutsche Filters Dryers
Send Inquiry
Product Code : AN 01
Brand Name : SYSTEM ENGITECH PVT. LTD.
Product Description

With rich industry experience and knowledge, we are engaged in offering a wide range of Agitated Nustche Filters Dryers. The offered range is fabricated by our team of adroit professionals using high grade raw materials and latest technology in compliance with the market prevalent norms. These Agitated Nustche Filters Dryers are known for their robust construction, corrosion resistance, high performance, user-friendliness and enhanced durability. Available in various specifications, these filter dryers can also be customized as per the needs of the clients within the promised time frame.



Description:

  • Agitated filter is a closed vessel designed to separate solid and liquid by filtration under pressure or vacuum, due to closed vessel operation product becomes odor less, contamination free, high purity

  • Use of hydraulic system makes equipment of trouble free operation

  • Wet cake can be reslurried and washed thoroughly with water or solvents

  • The discharge of wet cake is automatic

  • Drying of wet cake is also possible when drying features are incorporated

  • From this equipments we can do crystallization filtration, extraction, washing and drying

  • we can eliminate chain of conventional machines for filtration and saving of power, labor, space and idle time

  • Used in chemical, pharmaceutical, agro & fine chemical and food industries


Construction:-

Agitated filter is a cylindrical vertical vessel with a plain filter media at the bottom With specially designed agitator moving up ward and down ward as the necessity of the process.

The movements of agitator are,

  • clockwise movements fills the cracks and pressing during filtration.

  • Anticlockwise movements for reslurring when washing and for automatic discharging.

  • Hydraulic system is mounted for the up ward and downward movement of agitator and for discharge port opening and closing.

  • Washing header is provided for washing of the wet cake inside the vessel.

Filter

  • Different designs are made to suit application for chemical, pharmaceutical Industries from SS316, SS304, hastalloy and rubberlined.

  • Filter media is selected as per specific process requirements.

  • Detachable filter dryer can also be available to ease changing of bottom for various product.

Process Advantages

  • Toxic and hazardous material can be processed. - Product purity ma. intained - Sterilizable unit available

  • Product can be washed thoroughly and economically with solvents.

  • Blending of product possible before discharging. - Almost complete discharge possible.

  • Ease of material handling and avoid wastage of costly material during handling.

  • Large quantities can be processed faster than the conventional system.

  • The options available in the equipment are categorized as under.

Vessel Design Options

  • Top head shell and bottom welded const.

  • Bottom part with filter medium detachable and trolly mounted It can be lowered by Hydraulic cylinder provided for changing filter medium.

  • Drying version with heated filter plate, heated shell and or heating in hollow shaft with blades. the drying verison is available in both welded and detachable construcation dust arresting system is provided with dryers.

  • Material of construction available are SS316, SS304, hastalloy, alloy 20.

Options In Accessories

  • Standard models are fitted with push button/lever operated control panel complete Automation with PLC is also offered.

  • Different grades of gaskets: rubber, PTFE

  • Shaft sealing with stuffmgbox having non asbestos/gland packing, Mechanical seal Dry or wet type.

  • Fixed or variable speed of agitator.

  • Different filter medium Synthetics cloth, natural fibre, wire cloth multi layered sintered wire Cloth or sintered metal,

  • Vessel mounting on legs or hanging on lugs.

Standard Models

body, div, table, thead, tbody, tfoot, tr, th, td, p { font-family: "Nimbus Sans L"; font-size: x-small; }


Model No Filler Area m2 Working Vol Max. cake Vol Vessel Size Dia(D)    Lenght(L) Over All Hight(H) Motor Hp Filter      Dryer
P1 0.25 200 75 600 750 2500 2 2
P2 0.5 350 150 800 750 2900 2 3
P3 0.75 500 225 1000 750 3000 3 5
SE1 1.13 850 450 1200 750 3150 5 7.5
SE2 1.75 1300 700 1500 750 3200 7.5 7.5
SE3 2.5 2500 1000 1800 1000 3550 10 12.5
SE4 3.4 3500 1400 2100 1000 3650 12.5 15
SE5 4.9 5000 2200 2500 1000 3700 15 20
SE6 5.7 6000 2570 2700 1000 3750 15 20
SE7 7 7000 3100 3000 1000 3800 20 3
SE8 9.6 10000 4000 3500 1000 4200 25 30
SE9 12.5 13000 5500 4000 1000 4500 25 30
